[Chinese Packaging Network News] drupa 2016 is coming soon, this printing event covers printing, packaging, green, 3D and other major areas, set up drupa innovation park, drupa cube, packaging contacts and other special eye-catching Show. In the exhibition of printing equipment, exhibitors not only exhibited high-performance printing presses, but also added bonus points. Among them, the frequency of UV drying device is quite high.
1 Heidelberg UV UV drying star
At this year's exhibition, Heidelberg will exhibit nearly 30 types of offset presses, digital presses, folding machines, and paper cutters. Among them, the Speedmaster XL 106 eight-color flip offset printing machine is equipped with a UV UV drying star.

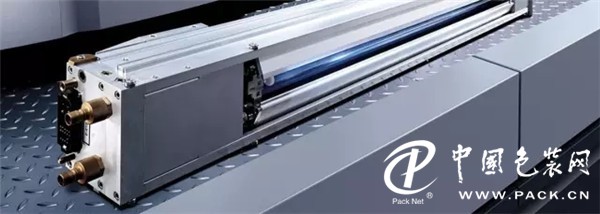

Heidelberg builds a special UV system with Dry Star LE (low energy) technology as an entry-level option for commercial printers seeking to enter UV printing. The use of highly reactive inks reduces energy consumption and the number of UV lamps required. The Dry Star LE UV Dryer is based on the proven Dry Star UV technology. The result is impressive print quality, rapid cure, and a small amount of powder just before being fed directly to the post-press equipment. Dry Star LE UV can be configured for one, two, or up to three lamps per printing unit. Depending on the print job specifications, the lamp output of each lamp can be flexibly adjusted to a range of 80 to 200 W/cm. The versatility of the Dry Star LE UV Dryer makes it a perfect alternative for commercial printers who are looking to capitalize on the advantages of UV printing to respond to changing market requirements (unglazed paper, glazing, poles) Short output time).
2 KBA VariDry UV Dryer
The Rapida 145-6+L FAPC ALV3+SPS-logistics, standing proudly at the KBA booth, exceeds 30 meters in length and will be the largest and most productive sheetfed offset press at drupa. The new features of Rapida 145 include pneumatic plate stretching, automatic quality control with QualiTronic PDF, and enhanced VariDryBLUE HS+ dryers.
KBA VariDry UV module with full flexibility. It can be used as a stand-alone unit at the back end of the printing press or as a drying unit between units; it has a strong adaptability, and all UV technologies can be applied to VariDry UV modules, including mercury lamps, metal halide lamps, and xenon lamps Wait. It can save half the savings for customers and reduce scattered radiation and infrared radiation. In addition, the KBA VariDry UV module also uses a curved surface design to reduce scattering and reduce heat into the machine by 30%. In terms of operation, it is also very simple. It integrates the use of time recorders, and the operation of replacing modules and lamps is very simple.
3 Ryobi New Silk LED-UV Printing System
During drupa 2016, Ryobi Shinsei Printing Machinery Co., Ltd. (RMGT) will make its debut with new logos, new corporate information and a new printing equipment lineup. A total of three sets of equipment were exhibited, and its new design inherited the original Mitsubishi machine, which restored the advantages of Liyou equipment and unified the newly designed product line. Among them, RMGT 10 LX 1050 six-color LED-UV offset printing machine: equipped with a CC coating unit and "0" pollution, "0" emission of LED - UV curing unit.
LED-UV printing system is a new generation of energy-saving and environmental protection UV printing system. Compared with the previous UV lamp-type system, this system can greatly reduce power consumption and has a long life. The drying device generates less heat and does not generate ozone. It can also light or turn off lights instantly, which not only has excellent environmental effects, but also has excellent operating performance. Traditional UV lamps need to be warmed up for 1 minute before they can be started, and they can be turned off after cooling for 4 minutes. It takes waiting time. For this reason, many operators consider the work efficiency and always turn on the UV lamp. In terms of causing waves, the LED-UV lamp only automatically lights up during printing, which can reduce the power consumption while improving work efficiency.
4 Komori H-UV UV Drying System
In drupa 2016, Komori will inherit the theme of IGAS2015. With "Open New Pages" as the theme of the exhibition, Komori hopes to use advanced printing technology and solutions to open new doors for businesses. The Lithrone G29 5-color sheetfed offset press equipped with an on-line coating device and an H-UV quick-drying device will make a great appearance. Komori's H-UV UV drying system consists of ultraviolet UV lamps and high-sensitivity UV UV inks developed using Komori's unique expertise. The H-UV system only installs one UV lamp on the delivery device, which can guarantee outstanding printing quality and reliability, and at the same time play a positive role in reducing costs and focusing on environmental protection.
The H-UV drying system quickly prints printed sheets on-line, which significantly reduces the number of man-hours compared to conventional oil-based printing. Since the printed product can be printed, die-cut, folded, and other post-press bookbinding after printing, the Komori H-UV system can effectively shorten the overall cycle time from the receipt of the printed material to delivery to the customer. Since no dusting is used in the printing process, powder falling and other failures do not occur. The surface of the print is smooth, which is conducive to the post-processing of the printed surface. In addition, the on-demand printer can also reduce the failure caused by overprinting. The use of the Komori H-UV system will help the company to develop a strict printing business for dusting adhesion and obtain more orders. Because it does not produce the phenomenon of dry density after the prints are dried, the operator can quickly and easily confirm the print quality.
