2018 Latest Model Three Cranks Manual Medical Bed

Model NO.: A-8
Size: L2150*W980*H500-720mm
Business Type: Manufacturer
OEM: Available
Warranty: 12 Months
Factory Location: 2 Hours Drive From Beijing
Trademark: XUHUA
Transport Package: Cartons
Specification: ISO9001, ISO13485, CE
Origin: Tianjin, China
HS Code: 94029000
Model NO.: A-8
Size: L2150*W980*H500-720mm
Business Type: Manufacturer
OEM: Available
Warranty: 12 Months
Factory Location: 2 Hours Drive From Beijing
Trademark: XUHUA
Transport Package: Cartons
Specification: ISO9001, ISO13485, CE
Origin: Tianjin, China
HS Code: 94029000
Product name: Manual Medical Bed with Three Cranks
Model: A-8

Technical Specifications:
1. Frame work made of rectangular steel tube. Epoxy powder coating finish, resistant to corrosion.
2. Detachable and lockable electrophoresis bed head and foot boards.
3. Bed boards is made of cold-roll steel sheets. Punching press and shaping in one time. With anti-slip system on both sides of the board.
4. Three functions adjustable by mechanical crank handles on the bed end:
     Back rest can be lifted 80°±5°
     knee rest can be lifted 45°+5°
     The whole height can be adjusted between 500mm and 730mm.
5. ABS crank handles with overloading protection system.
6. Bed mounted on 125mm diameter caster with individual brake to fix the position.
7. Bed overall size: L2170*W940*H500-730mm
8. Finish: Epoxy powder coated.
9. Max Loading: 235kg

Product name Manual Medical Bed with Three Cranks (A-8)
size L2150*W980*H500-720mm
Headboard and footboard electrophoresis bed head and foot boards
Frame material Mild steel, epoxy powder coated
Functions adjustable Manually by crank handles
Back rest  80°±5°
knee rest 45°+5°
height  500mm -720mm
Max Loading 235kg


Trade Terms:
1) Price valid date: 3 months.
2) Payment term: 30% TT paid in advance, with 70% balance paid before shipment. Or L/C at sight.
3) Delivery time: 30 days after receive the deposit.
4) Package: standard export carton package or as customerized.


After sales service:
We respect and positively following your feedback after receive the goods.
We provide 12 Months warranty after goods arrive.
We respond your complain within 48hours.

Professional service:
We have well-organized working team, will reply all your inquiry and requirements timely and professionally.
We cooperate with customers for tender bidding and provide all the necessary documents.
With professional R&D department, all technical support are from our engineers team.

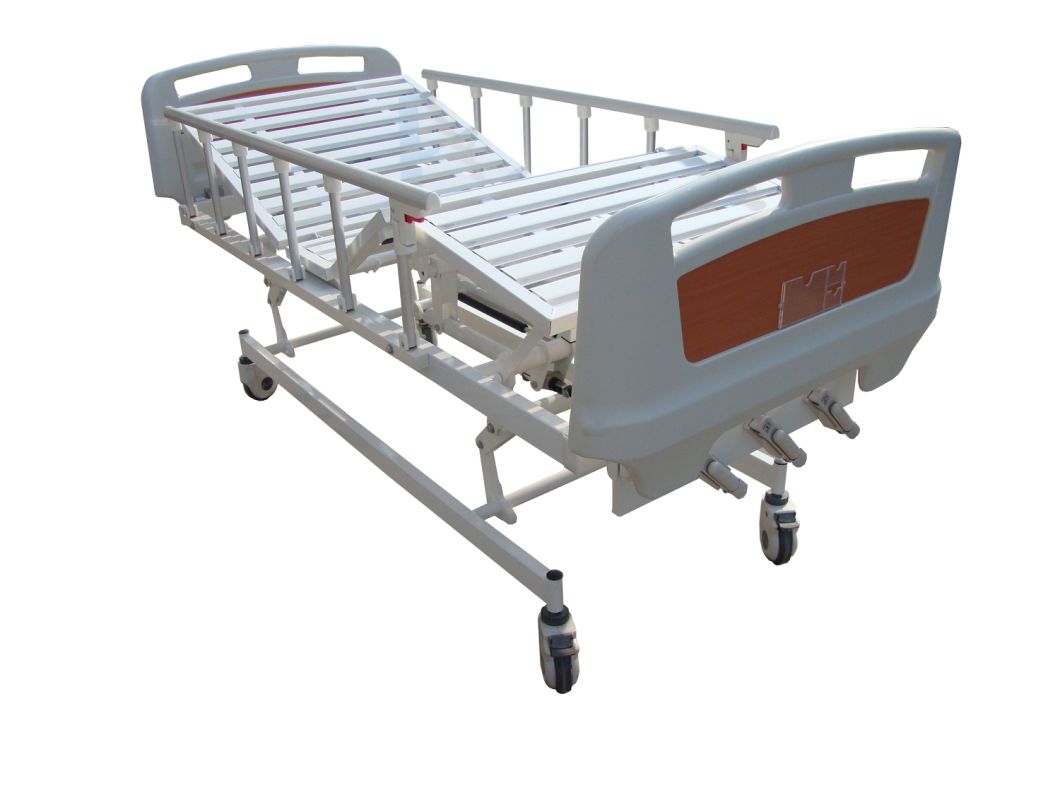

Product Pictures:

2018 Latest Model Three Cranks Manual Medical Bed

We can also provide customized design , if you have demand about the gard rail, bed board, castors and size , pls kindly let me know, thanks!


Helen  Zhang
Tianjin Xuhua Medical Equipment Factory.
Tel: 0086-22-83717985
moblie :0086-18892290915
Website: www.xuhuamedical.com
http://tjxuhua.en.made-in-china.com
Address: Door 2, No.10 Building, Huadingzhidi, No.1, Huake 3rd Road, Xiqing District, Tianjin, China
