How to use atmospheric hot water boiler
Atmospheric hot water boiler is a non-pressure hot water boiler with a vent on the top and the boiler body is always operating at atmospheric pressure. Its main feature is that the boiler is not under pressure and has no hidden safety risks. It is mainly used for heating and production. Hot water is one of our more common boiler varieties. Atmospheric hot water boilers are not special equipment (boilers), and the design, production, installation and use of such boilers are not subject to the supervision of technical supervision departments.
ã€Characteristics of atmospheric hot water boiler 】
The current atmospheric fuel oil hot water boiler has the characteristics of computer control. The boiler is intelligent and automated. Generally, the boiler is equipped with a computer controller, which displays a complete display, such as the use of the boiler pump, the working status of the burner, etc. The temperature of hot water in the boiler, etc. will be transmitted to the computer screen through this controller, and it will be clearly visible in front of people's eyes. During operation, there are corresponding operation buttons for the operator to use, stop and start, etc. It is fully functional and the operation time can be set at will, which is very convenient. This not only saves power consumption, but also meets the needs of people. It is a very good technical invention. This type of boiler is generally heated by electric heating rods, which has a long service life and high efficiency, and is also convenient for installation and maintenance, so it is often used by people.
ã€What is the use of atmospheric hot water boiler】
Hot water boilers are mainly used for heating and bathing. The hot water boiler circulates the hot water in the heat preservation water tank through the hot water circulation pump, and heats the hot water in the water tank repeatedly to achieve the purpose of bathing; the hot water boiler circulates the hot water in the heating pipe through the hot water circulation pump, through the radiator (radiator) Can meet people's heating requirements; hot water boilers and hot water circulation pumps with heat exchangers can achieve dual functions of bathing and heating.
ã€Atmospheric pressure hot water boiler offer】

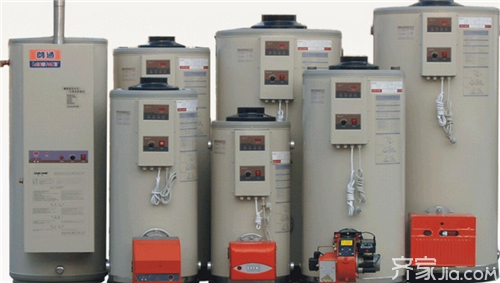

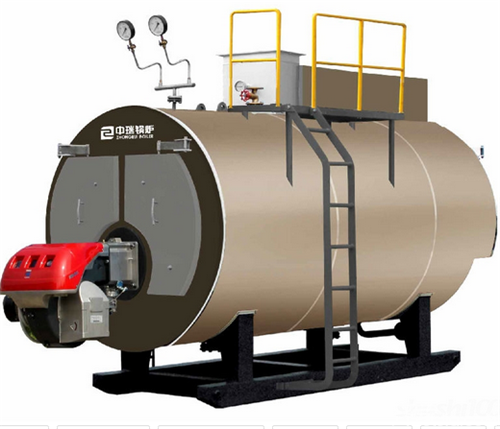

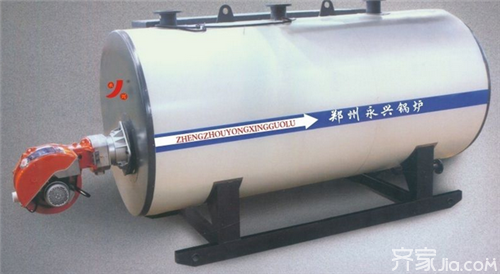

There are two types of atmospheric hot water boilers: vertical and horizontal. For general vertical hot water boilers, the price used by the public is ranging from 8000-15000 yuan. According to different specifications of hot water boilers produced by different manufacturers, the prices are different. Usually manufacturers also provide digital screens for people, etc. , People should choose according to their needs; and horizontal atmospheric hot water boilers usually cost from 10,000 to 15,000 yuan, and some atmospheric water heater boilers used in factories cost more than 100,000 yuan, usually according to different fuels The price will also be different, and some smokeless hot water boilers used by manufacturers even cost more than 150,000 yuan, while some large coal-fired hot water boilers cost more.
[Notes on the use of atmospheric hot water boiler]
1. Directly close the atmospheric hot water boiler to the tap water or heating system in a closed cycle. That is, the exhaust pipe on the boiler body that communicates with the atmosphere is used as the return water pipe, so that the boiler body is always under full water pressure. There are two kinds of hazards in this closed circulation method: First, when the temperature of the boiler water is too high, the generated steam cannot be discharged, so the pressure will continue to rise, and explosion and leakage accidents may occur at any time. The second is that even if the boiler water temperature is not high, a large amount of steam will not be generated. The higher the floor, the higher the pressure of the hot water circulation in the boiler body, and the greater the risk.
2. The atmospheric hot water boiler is installed on the first floor or basement, and the hot water storage tank is installed on the roof. This method also uses the exhaust pipe on the boiler body that communicates with the atmosphere as the return water pipe. Although the boiler body does not withstand the pressure exerted by the ring pump, the boiler is always subjected to the hot water static pressure provided by the high-level storage tank. The higher the floor, the higher the hot water static pressure.
3. Change the atmospheric hot water boiler to a steam boiler, that is, install the steam exhaust pipe that communicates with the atmosphere on the boiler body directly on the steaming cabinet, sterilization cabinet, etc., use steam to steam the rice or steam the dishes or sterilize the steam. A control valve is installed on the pipe.
Editor's conclusion: The above introduces the quotation of atmospheric pressure hot water boiler for everyone, I hope to help everyone. For more related knowledge, please continue to pay attention to the information platform of this website. Follow-up will present more exciting content for everyone.
