Weak and cold heat for any time - NITECORE HC33 experience

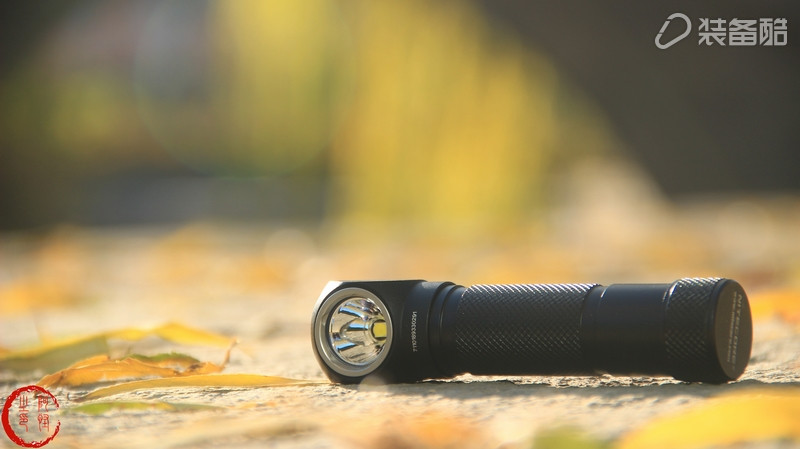

The L lamp is not unfamiliar to friends who often touch the flashlight. The performance of its unique shape is increasingly used in various fields, such as outdoor mountaineering, car maintenance, etc., and the protagonist of today's experience NITECORE HC33, equipped with One XHP35 HD LED, combined with NITECORE NL1835HP high-discharge and low-temperature resistant battery, can release 1800 lumens of brightness, especially for use in high-altitude and severe cold environments. It is a gospel for mountaineering enthusiasts.
First of all, please take a look at the short video about the Attcoh HC33 and have a brief overview of it:
Product Features:
High Performance Multi-Purpose L-Type Headlamps with CREE XHP35 HD LED, Up to 1800 lumens Ultra Bright Output (Above discharge capacity 8A above)

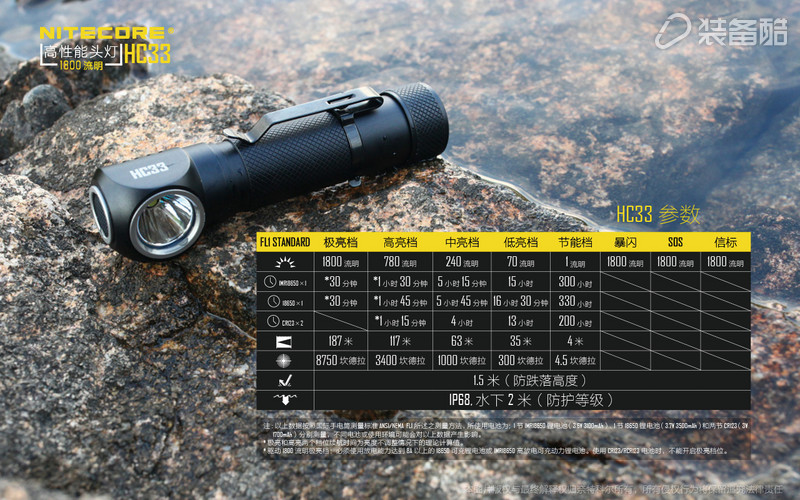

The optical system manufactured using digital precision optimization technology has a maximum intensity of 8750 candelas, a longest range of 187 meters, one button control of 5 brightness levels and 3 special functions, convenient high-efficiency constant current circuit, and battery life of 330 hours. Prompt function, LED flashes battery voltage (accurate to ±0.1V)
A wide-area floodlight system specially designed for outdoor applications, with a 100° active lighting range, built-in advanced temperature control module, automatically adjusting the brightness according to working conditions and outside temperature. Headlights made of high-quality nylon elastic materials, comfortable and breathable battery electronic defense Reverse connection protection function Double-coated anti-scratch optical lens Aerospace grade aluminum alloy wear-resistant military regulations Third-grade hardened surface treatment Meet IP68 protection standard (2 meters underwater)
1.5 m drop resistance bottom magnet adsorption function and inverted function
Size length: 105.3mm
Tube head: 25.5mm x 24.2mm
Tail diameter: 23.8mm
Weight: 51.2g (without battery)
Accessories spare waterproof O ring, button caps, hold clips, headlights, bracket

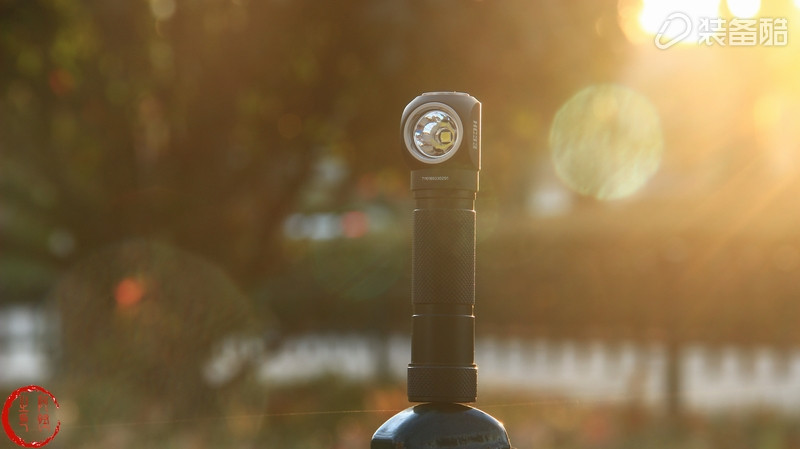

First, the appearance of details

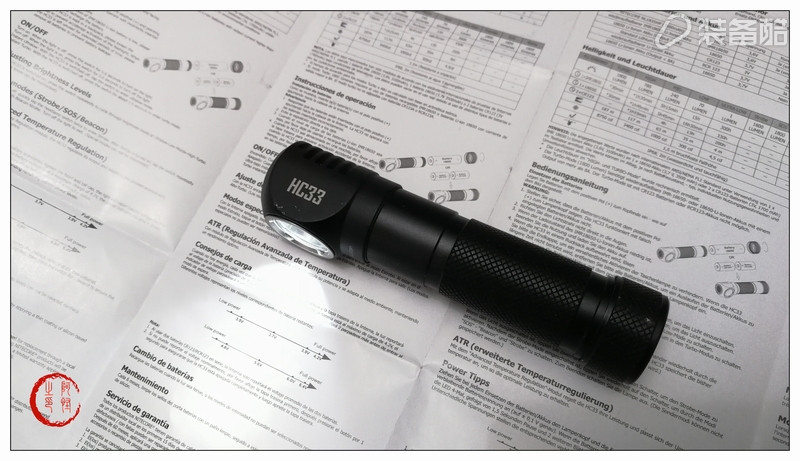

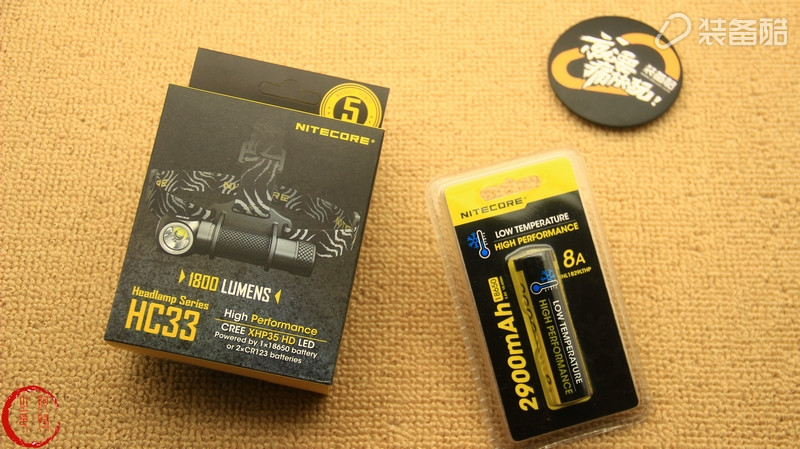

In addition to the natcol HC33 L lamp, there is also a new NITECORE NL1835HP high-discharge, low-temperature battery.

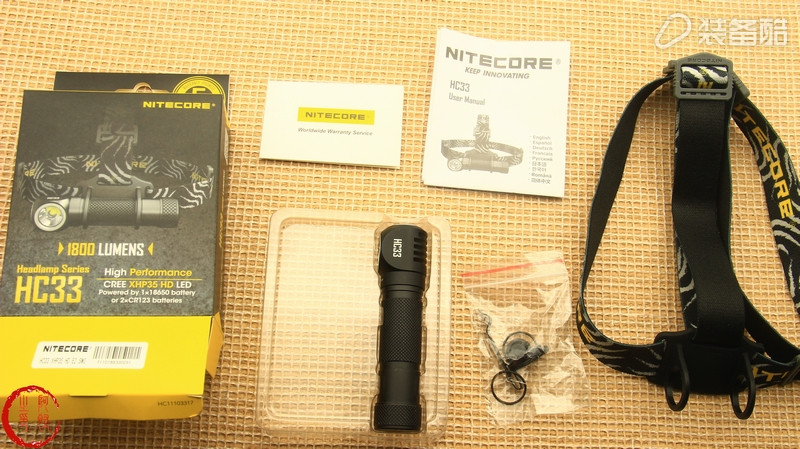

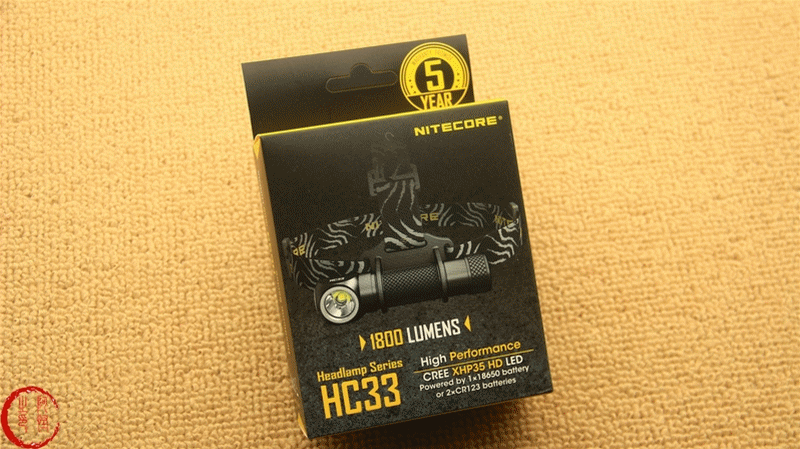

The main black and yellow color of the box is the style of the Knight Cole brand. The 5-year warranty in the upper right corner is the brand's commitment to quality. Several aspects of the cartridge are briefly described.
Standard

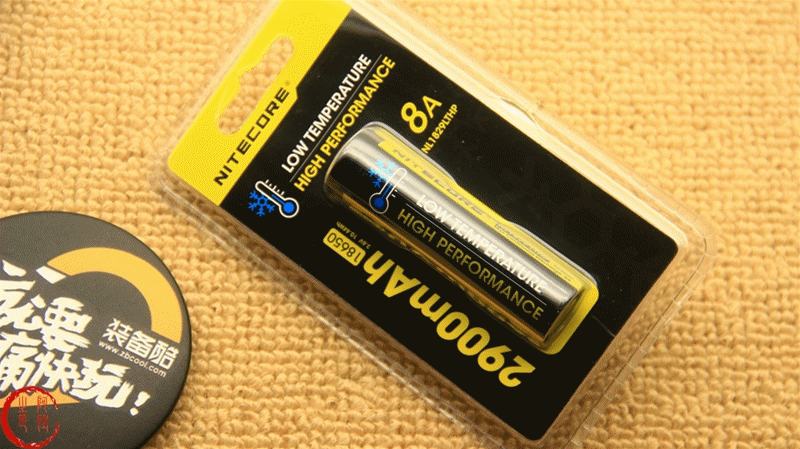

This evaluation also included the NL1829LTHP 3.6V 10.44Wh 2900mAh 186501 high-discharge, low-temperature battery, which was additionally supplied by the manufacturer. It was specifically designed for low-temperature environments, greatly improved the cold resistance of ordinary batteries, and achieved low temperature resistance of minus 40°C. It is used in various harsh environments such as high altitude and low temperature. Once again, the discharge current of the battery is increased to a new level, and the current output reaches 8A, which perfectly meets the needs of high-performance electronic equipment. By the way, the HC33 can only reach 1,800 lumens using a battery with a discharge capacity greater than 8A.

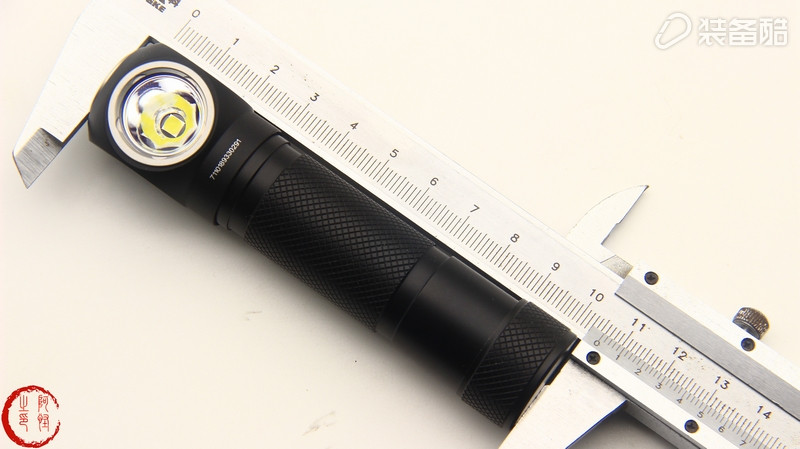

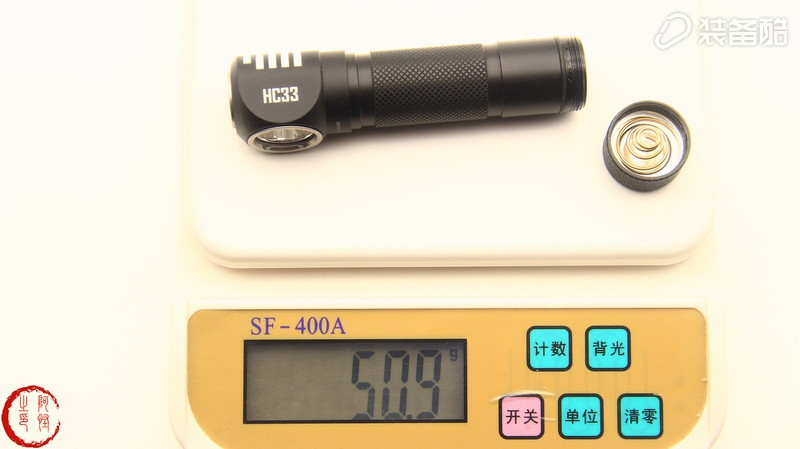

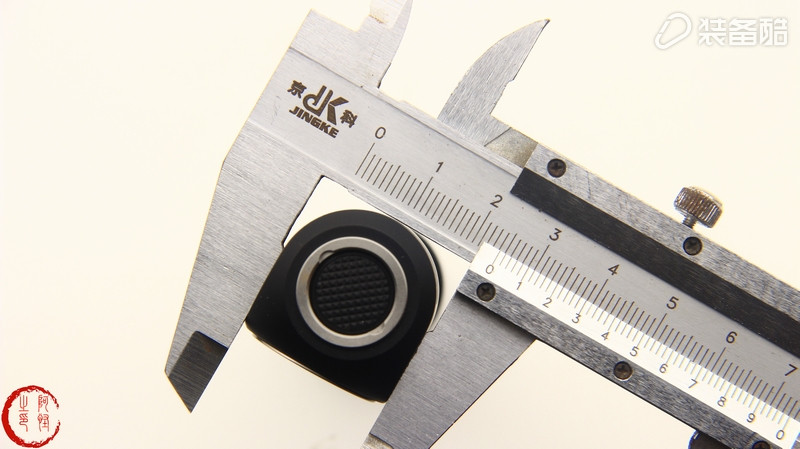

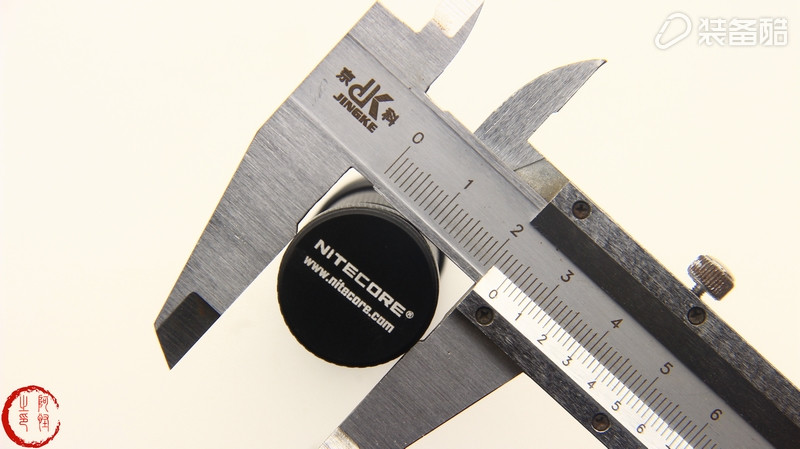

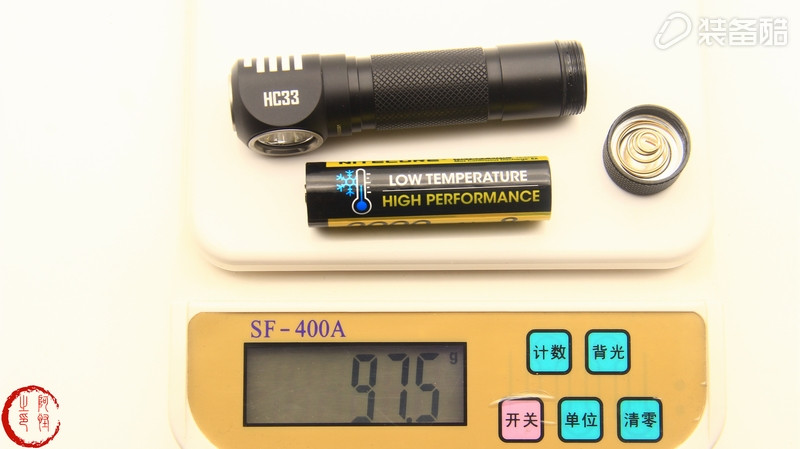

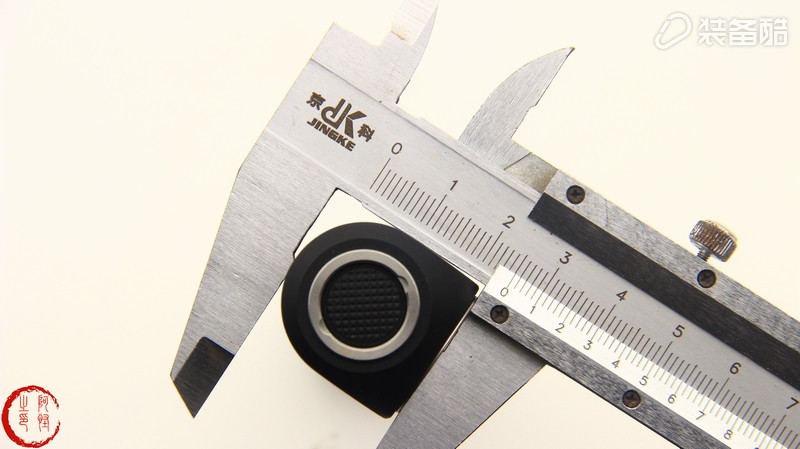

The HC33 is of medium build. After measuring 106.0mm, the length and width of the barrel are 25mm and 24mm, respectively. The diameter of the tail cap is 24mm, the net weight is 50.9g, and the combat weight is 97.5g (without holding clips).

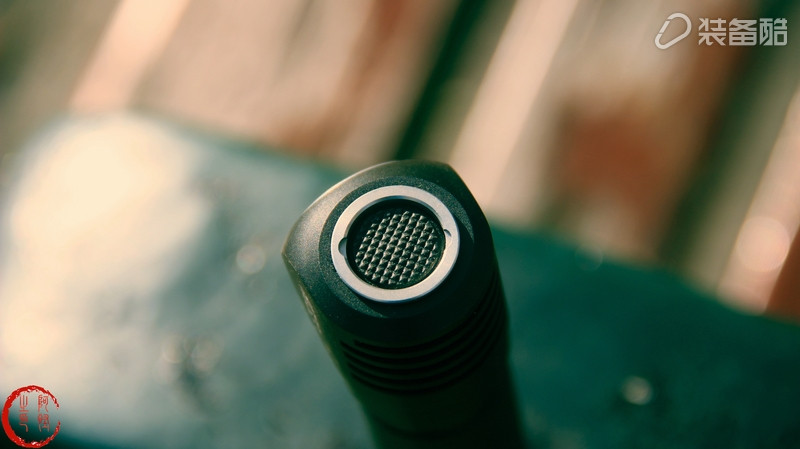

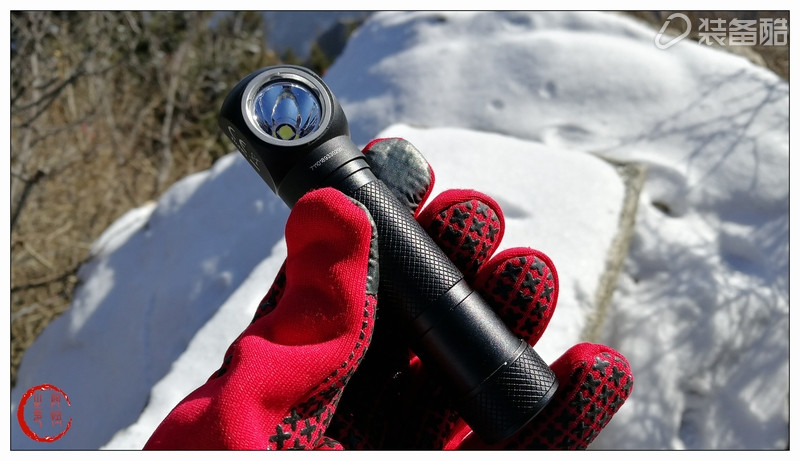

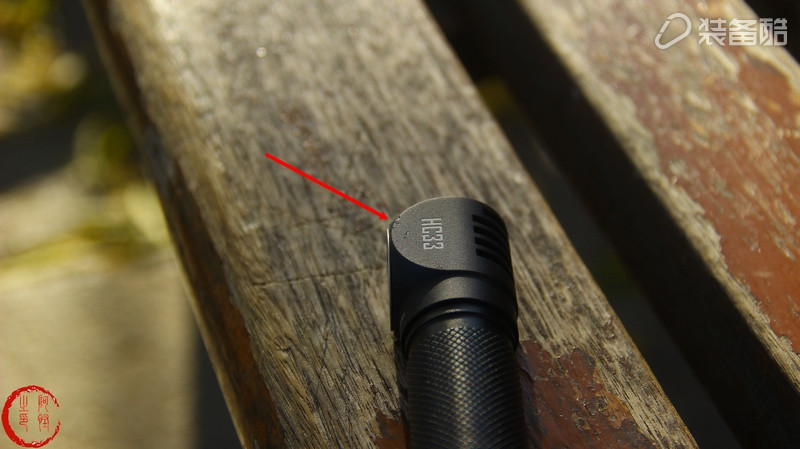

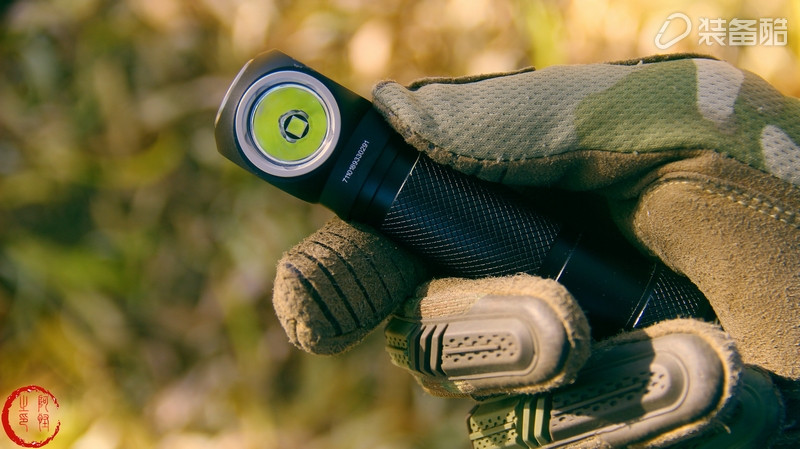

The key setting position is at the top of the lamp head, and the soft rubber keys are covered with anti-slip particles and the hand feels better. The stainless steel pressure ring is provided with two grooves, which is about 2mm above the keys, so as to avoid accidental knocking. Even wearing gloves in winter is still convenient.

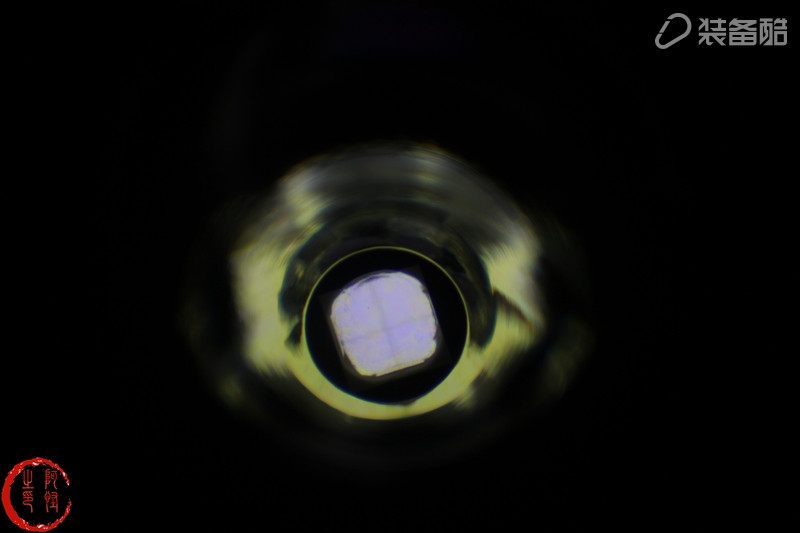

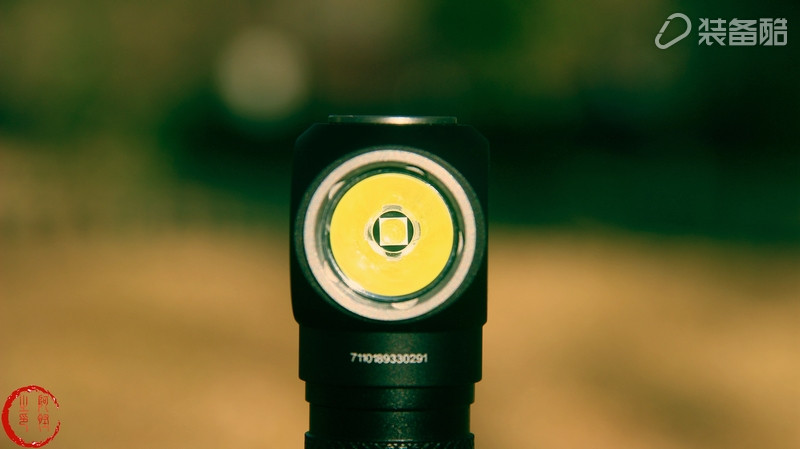

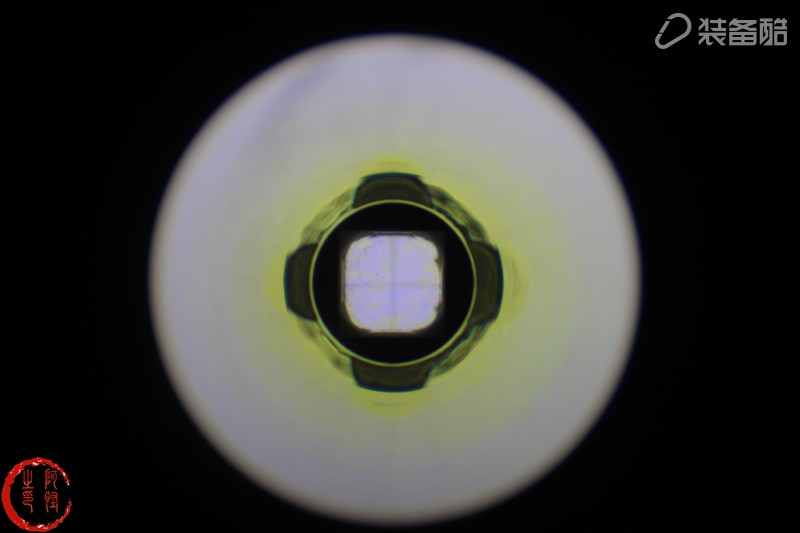

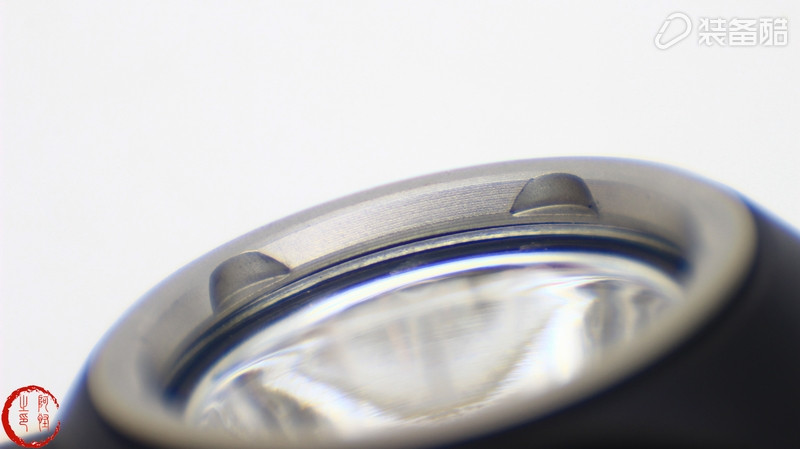

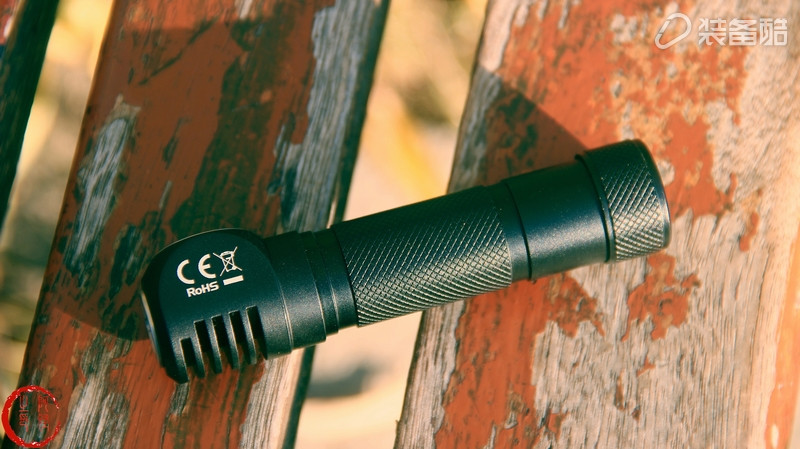

HC33 adopts the XHP35 HD LED from CREE, which is equipped with a large-current discharge battery and can guarantee the maximum output of 1800 lumens. The outer ring of stainless steel pressure ring can increase the head protection, can effectively protect the lens from falling directly from the impact, the pressure ring is set with five grooves, convenient hands-on ability users to explore or replace parts. The cylinder's serial number is printed on the lower side, and the laser print type and CE safety mark are printed on the left and right sides respectively.

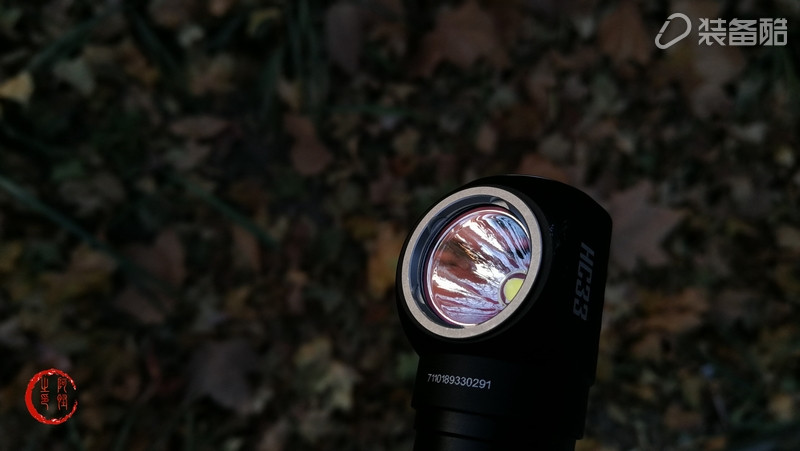

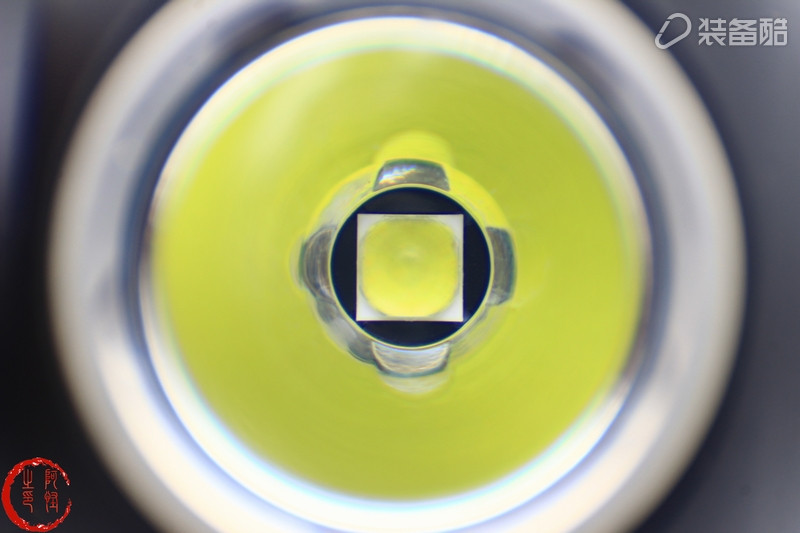

Double-coated AR tempered glass, glossy reflector, to ensure a certain long-range capability, while the efficiency of high light efficiency, tempered glass also plays a role in protection of the LED, in spite of the ordinary bumper.

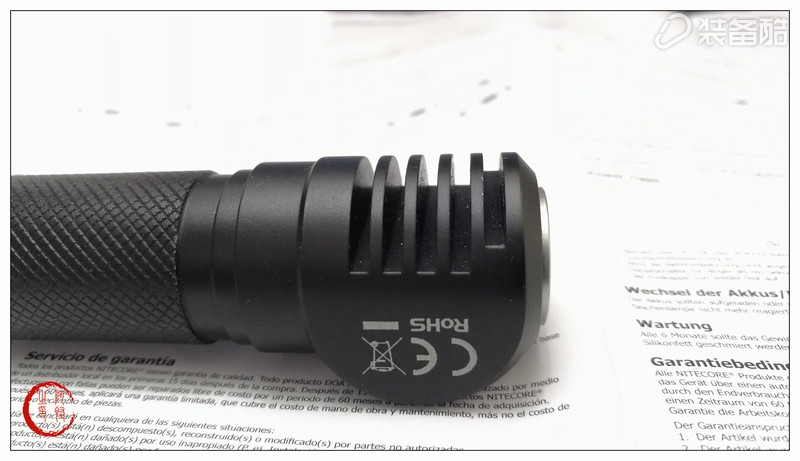

Four heat sinks form five deep and wide heat sinks, occupy about half the volume of the head, maximize the heat dissipation area and reduce the weight, plus Knightel's unique built-in ATR high temperature control module, when the temperature is at a certain value At the time, it has automatic adjustment gears to ensure its longer use and longer service life.

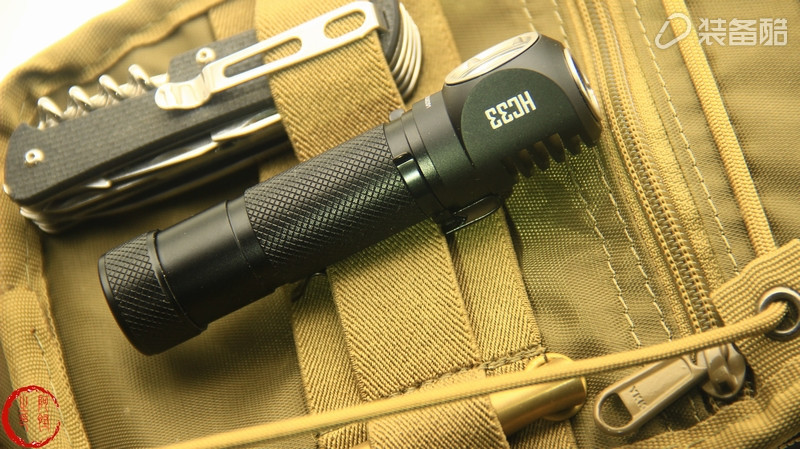

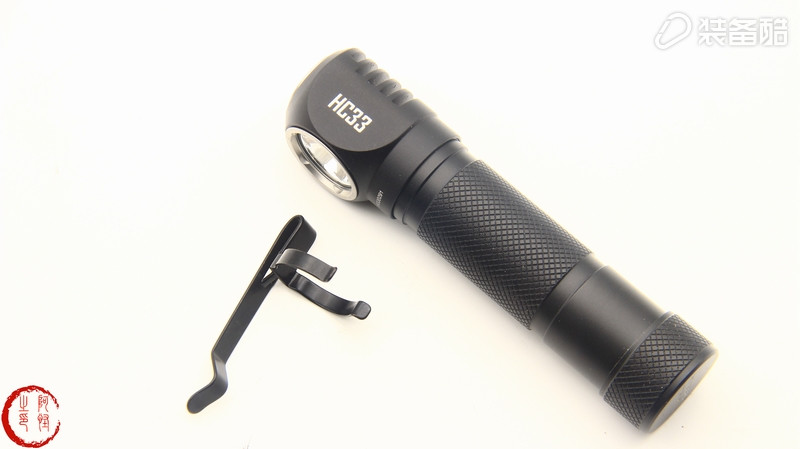

The HC33 comes standard with clips that can be freely disassembled according to your needs.

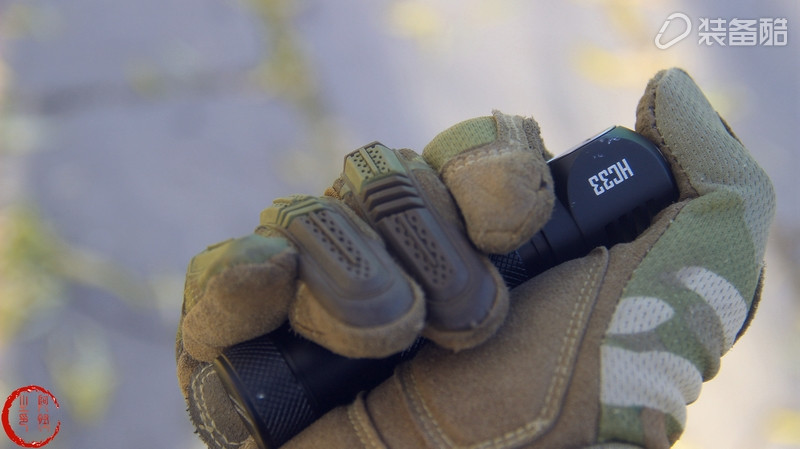

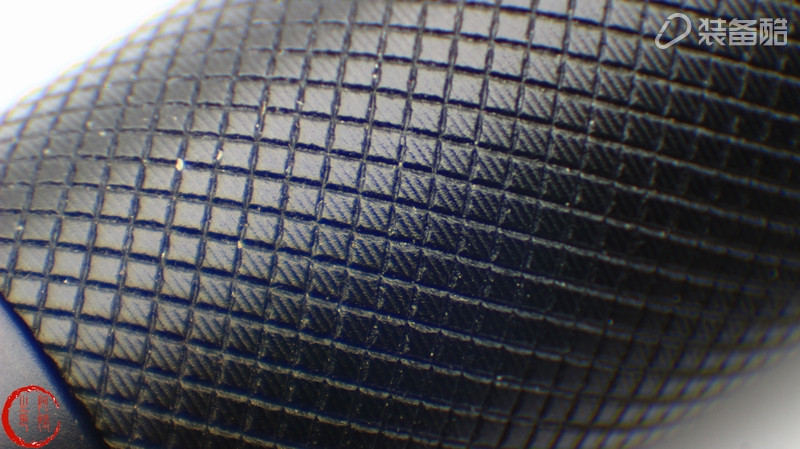

The barrel is full of knurled blocks, and each of the small blocks has three tangents. The grip feels better, and the effect of sweating is hot when the weather is hot.

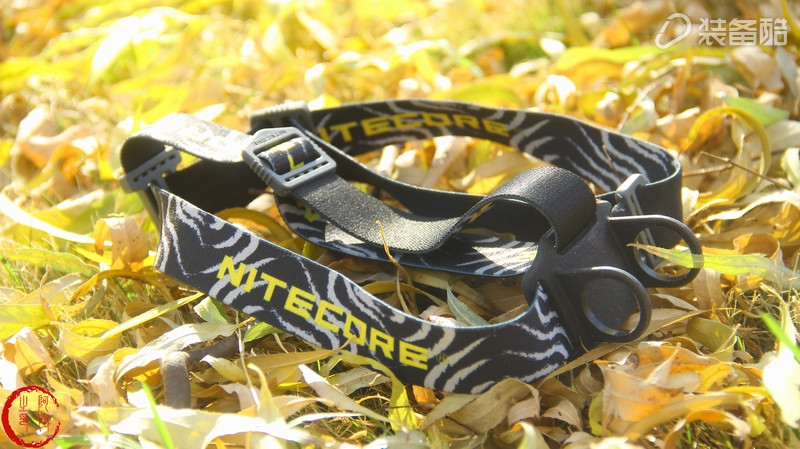

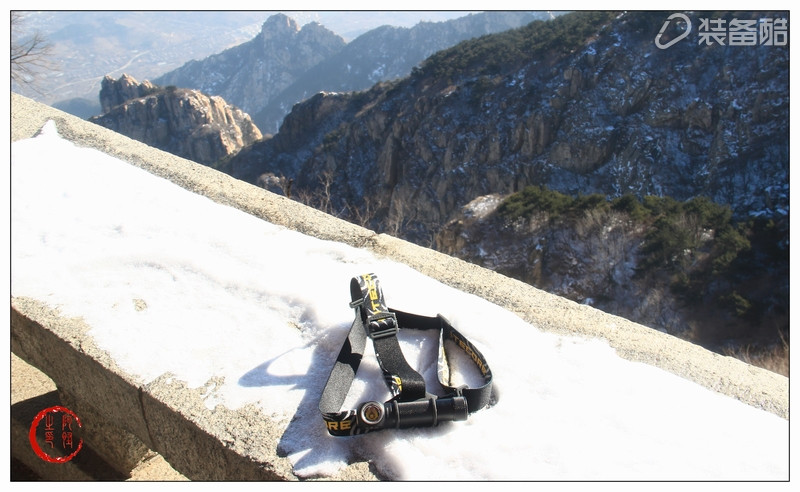

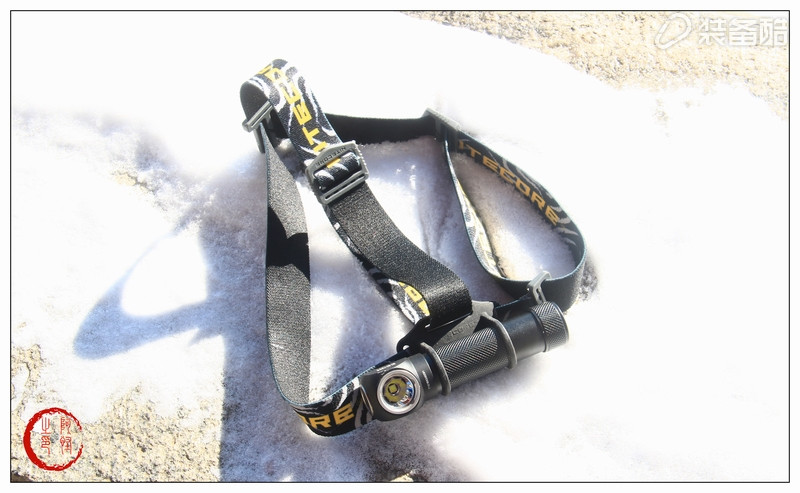

Elastic wide-weave headlights with a brand logo on the front, with distinctive brand features, with two adjustment buckles to use. The head lamp holder is made of soft rubber material and can be easily inserted into the torch. Adjustable range is extremely large, even if you wear a velvet cap in winter, you can still wear it easily.

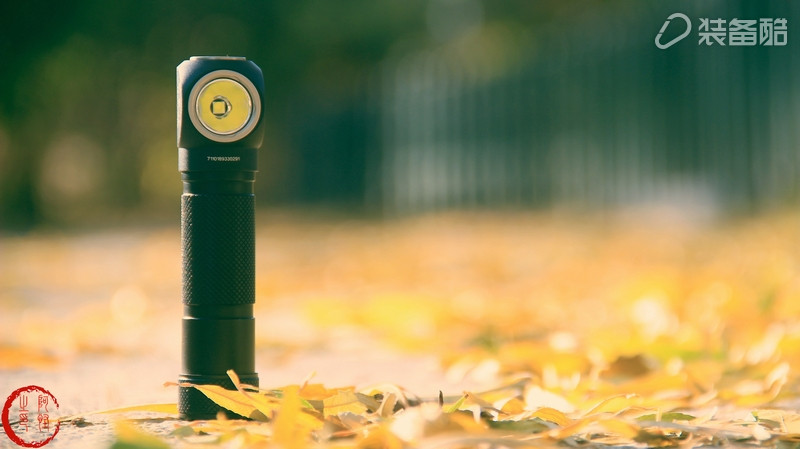

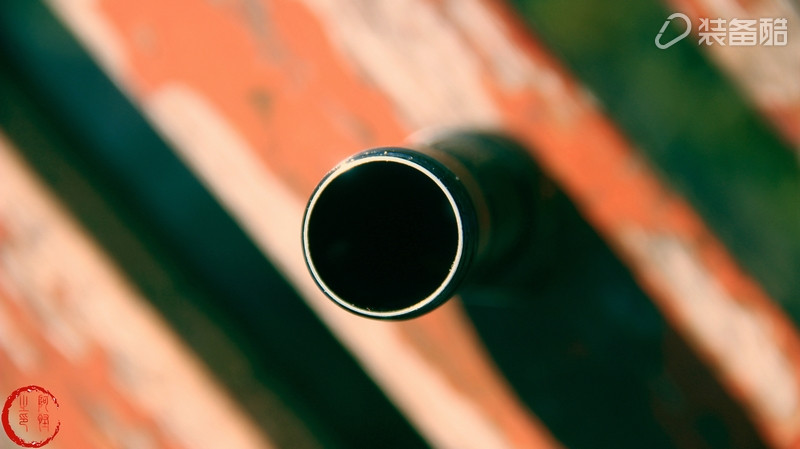

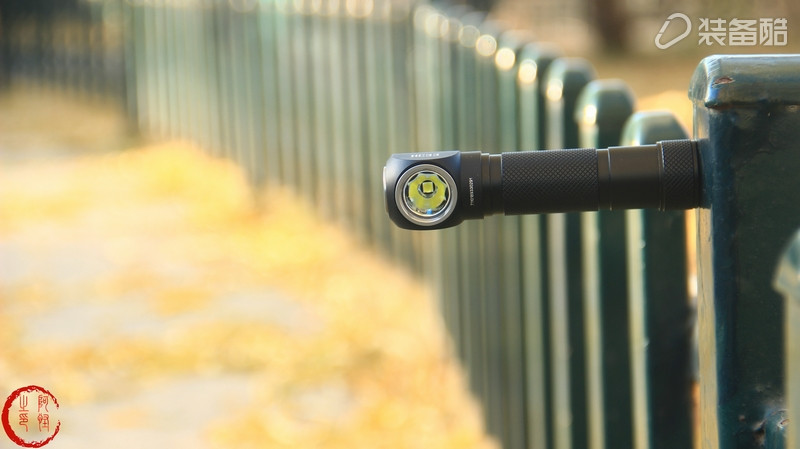

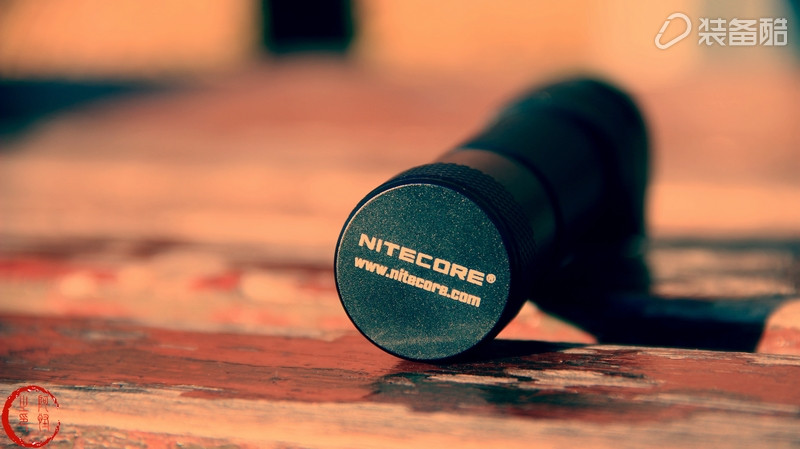

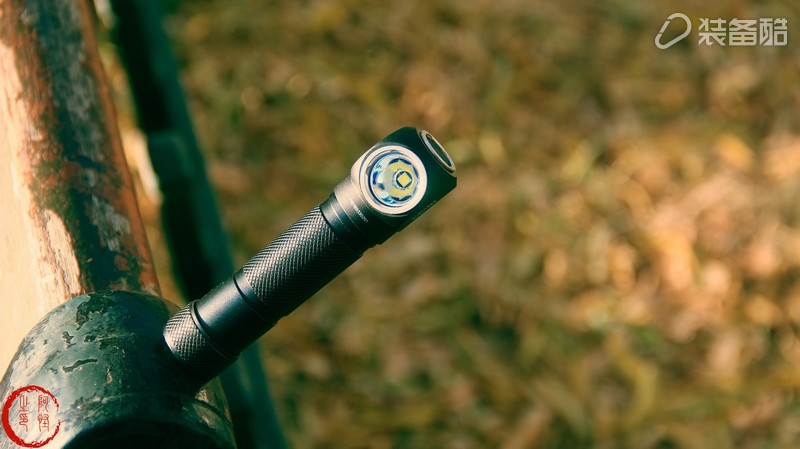

The bottom of the tail cover is flat and can be easily inverted. In addition, the brand logo and official website address are printed, and there are strong magnets inside, which can be freely adsorbed on iron objects and free hands. In the next test, the magnetic force is large, even if the sucking side sucks. The only regret is that the internal magnet looks like it cannot be removed. It seems to be stuck.

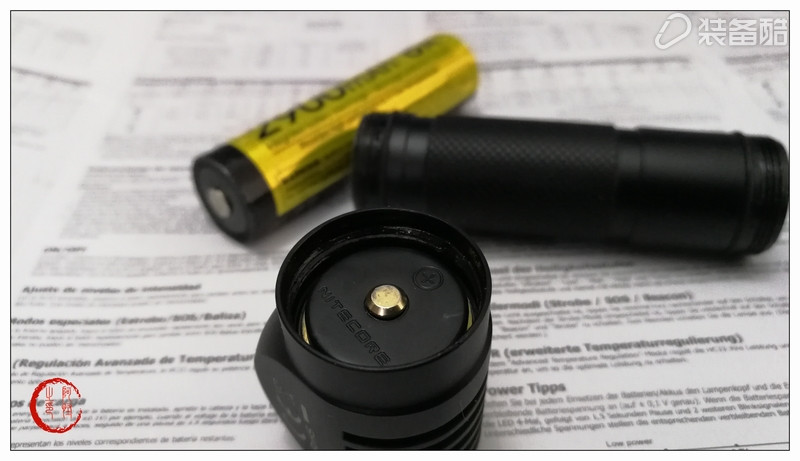

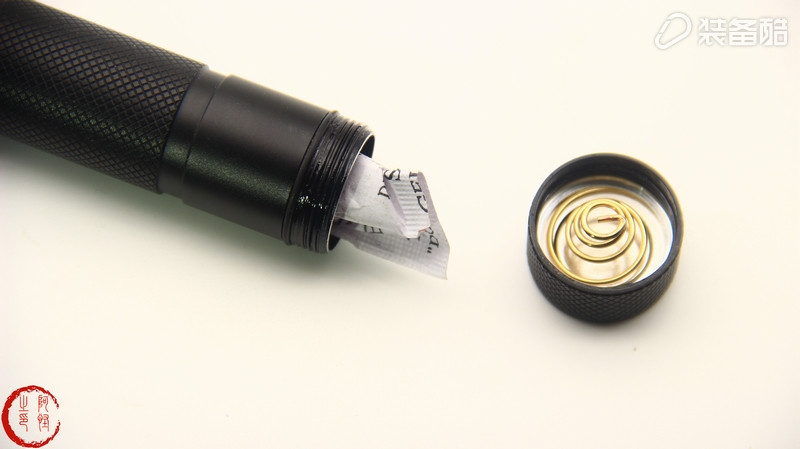

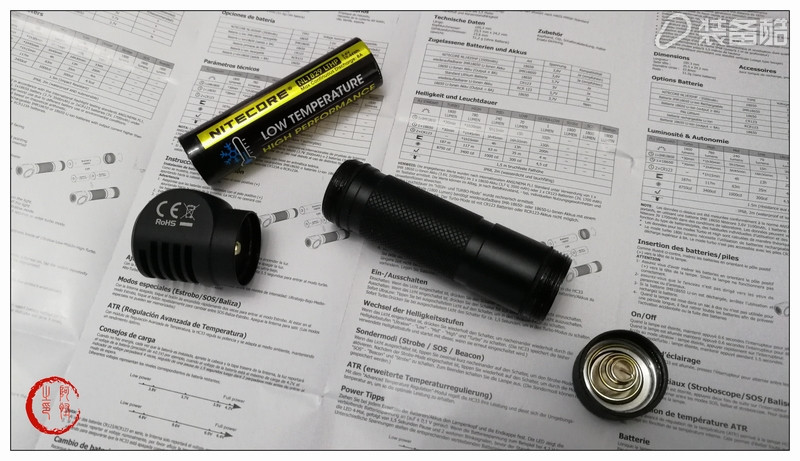

The tail cover is also knurled one week, and the tail cover is unscrew. Visible inside the battery compartment is a bag of desiccant, the negative electrode is gold-plated spring, the end face is conductive, rectangular thread, the tube head can also be unscrewed, the positive electrode plated copper column can be clearly seen, so it supports the flat head 18650 Battery, anti-reverse design.
The HC33 tube body can be interchanged before and after, and it can still light normally.
Second, simple test
operating:
In the closed state, press and hold the switch for 0.6s to open, otherwise close.
Short press the switch to turn on the 1 lumens moonlight file.
In the off state, press and hold the switch for 1.5 seconds to turn on the bright light.
In the closed state, double click to open the flash, and press shortly to sos-beacon-burst. There is no memory function in this mode.
In the on state, the short press switch changes in order of moonlight-low, medium, and high, and in this mode, it has a memory function.
Battery detection: The battery is reloaded after every power off. There is a power reminder function, that is, the battery voltage is reported in a blinking manner. The battery voltage is accurate to plus or minus 0.1V. If the battery voltage is 4.2V, the led blinks first. After a pause of 1.5 seconds, it flashes 2 more times.
1, color temperature spot night shot part
The white temperature of HC33, no strobe visible to the naked eye, irradiation angle of about 100 degrees.
10 meters from the night shot:
20 meters from the night shot:
100 meters from the night shot:

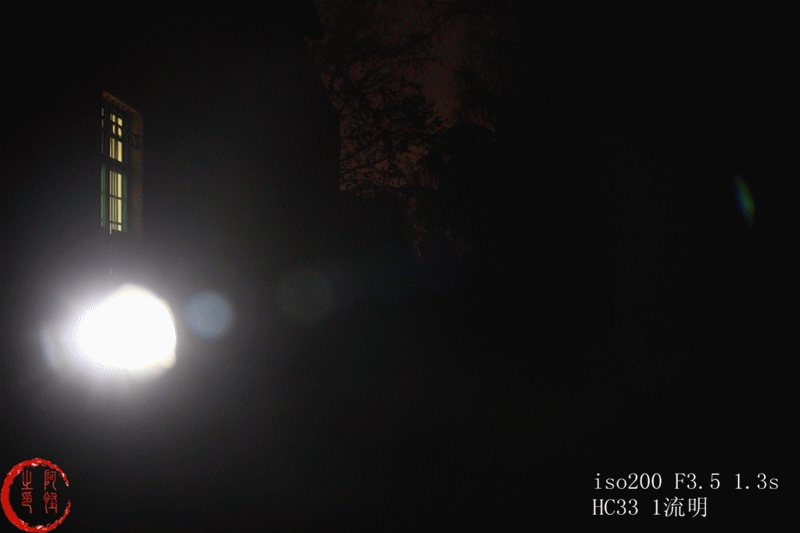

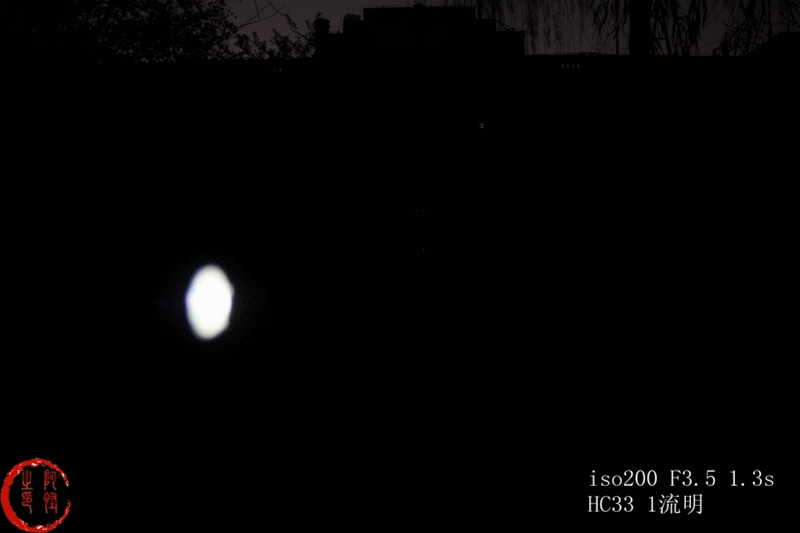

1 Lumeni moonlight applications also have a wide range of applications, such as getting up at night, viewing maps on hiking trails, and more.
2.HC33 high-end 1800 lumen indoor wind test

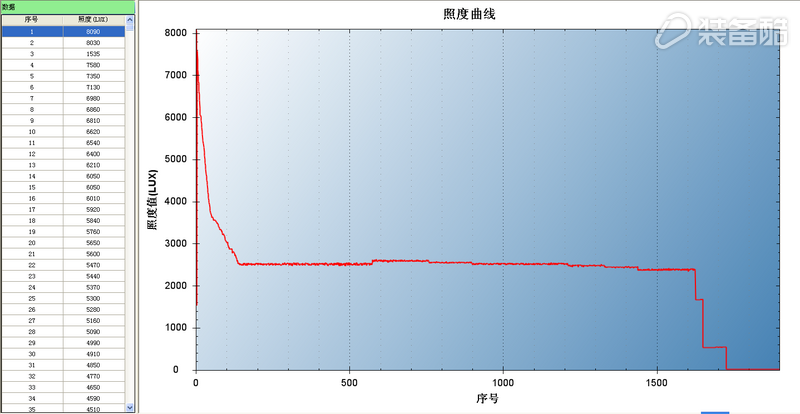

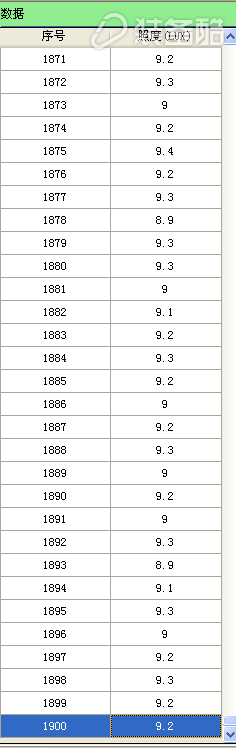

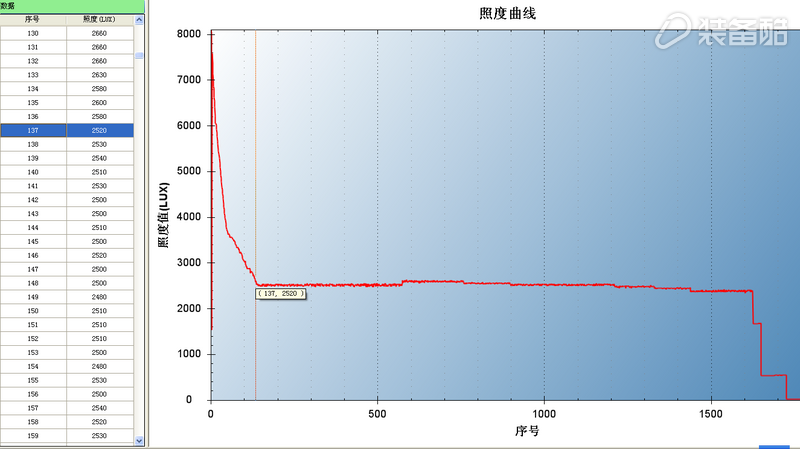

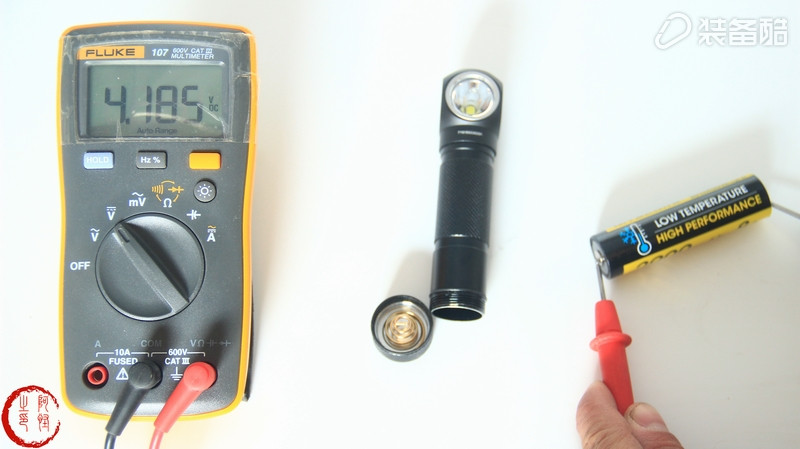

Indoor wind-free environment test, room temperature around 15 degrees Celsius, using NL1829LTHP 3.6V 10.44Wh 2900mAh 186501 high-discharge low temperature battery full test, the battery voltage is 4.185V. The illuminance meter was used to measure the illuminance of the HC33 at a distance of one meter. A set of values ​​was recorded every 6 seconds. A total of 1900 data were automatically recorded. Open an extremely bright 1800 lumens and start the test.

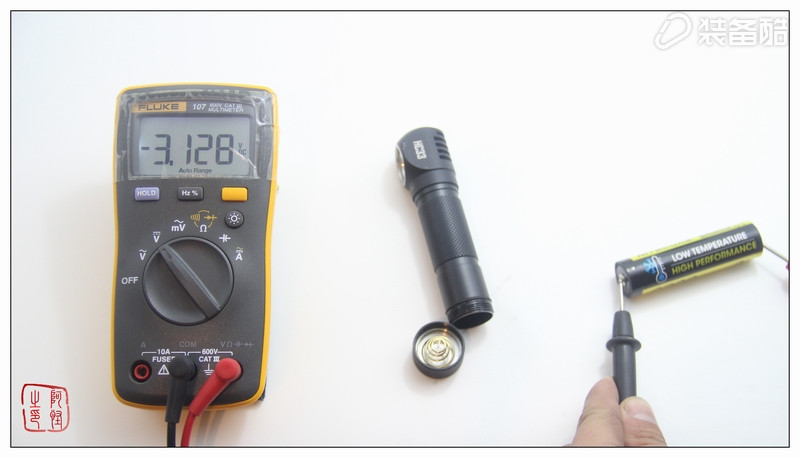

After the 1900 data test was completed, the flashlight was still on. Remove the battery and measure the battery voltage to 3.128V.
3, HC33 waterproof test

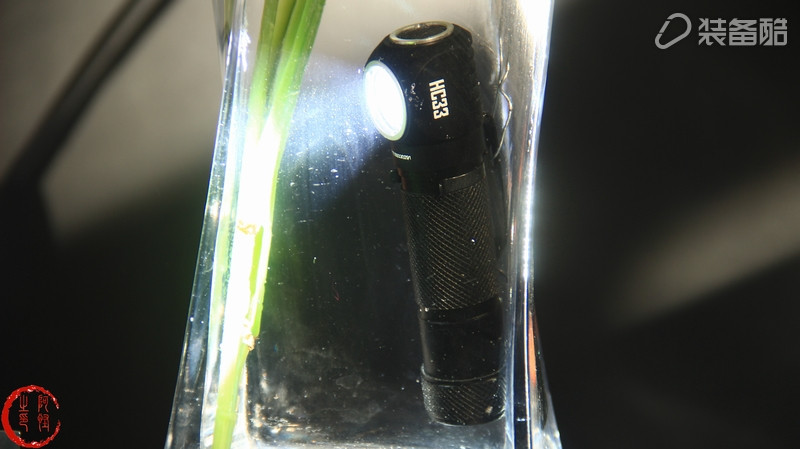

HC33 protection class IP68, 2 meters underwater, that is, dust level 6, completely prevent the entry of dust, waterproof grade 8, under a certain pressure for a long time soaking. Only waterproof test is done here. Put the flashlight underwater in a 30cm vase, and it can still operate normally in water. Take out the flashlight after half an hour. No water stains are found inside the barrel head and in the battery compartment. It can be seen that the button press ring and the light cup press ring and its rigorous, thread Waterproof ring tightly fit, waterproof test passed
Under the HC33 waterproof test time-lapse photography video:
. 4, HC33 low temperature test

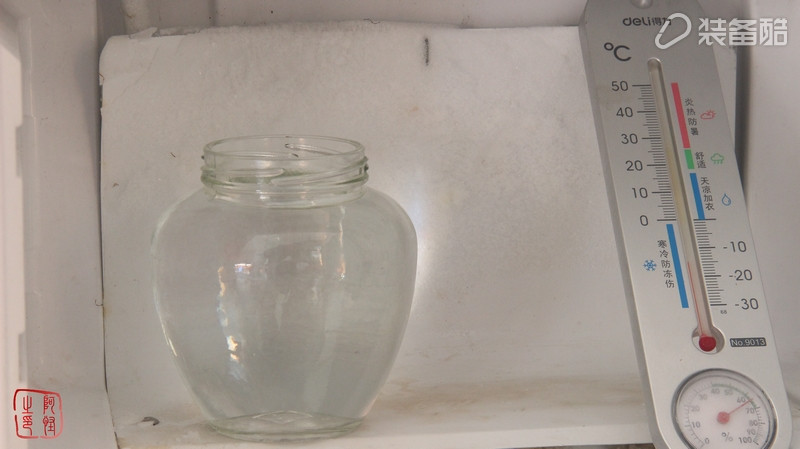

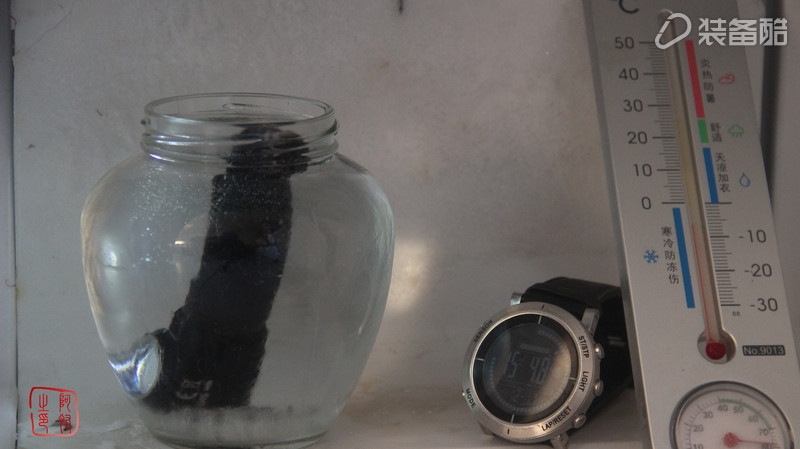

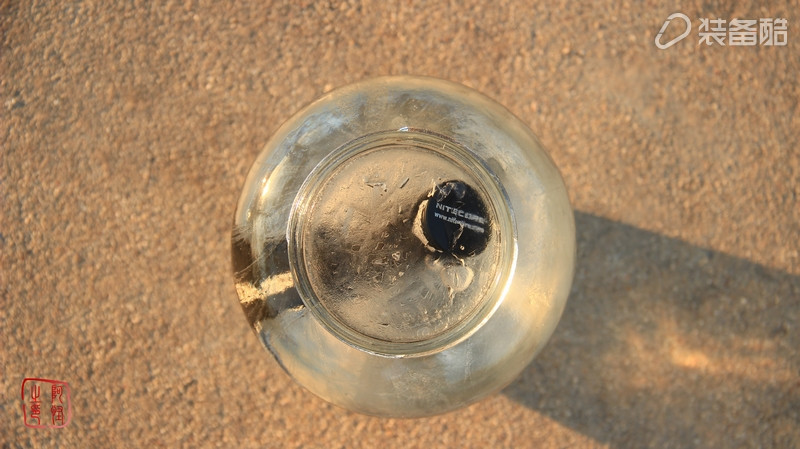

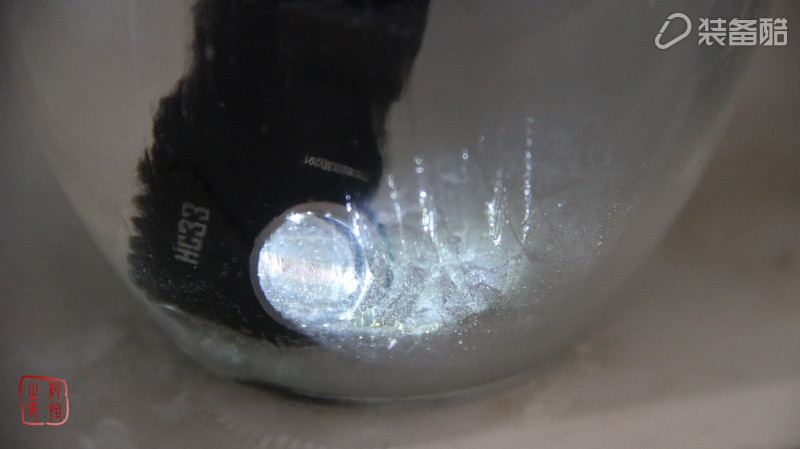

The HC33 is equipped with the NL1829LTHP high-discharge, low-temperature-resistant battery and is capable of operating even at minus 40 degrees Celsius in low temperature environments. Tested in the refrigerator freezer layer, measuring temperature is about minus 15 degrees Celsius, open the flashlight moonlight file, placed in the cup, completely covered with water, close the refrigerator cover and start timing.
After two hours, the refrigerator was turned on, and the water in the cup had all been frozen, while the HC33 was still on, showing low temperature resistance. Conditions can be tested at minus 40 degrees Celsius and it is estimated that it will be more cool.
5, HC33 anti drop test
In the use of careless hands in the next fall, fell on the stone ground, about a meter high, head and tail cover has obvious scars white, but the flashlight can still be used normally.
6, HC33 comparison test with the same type of cartridge

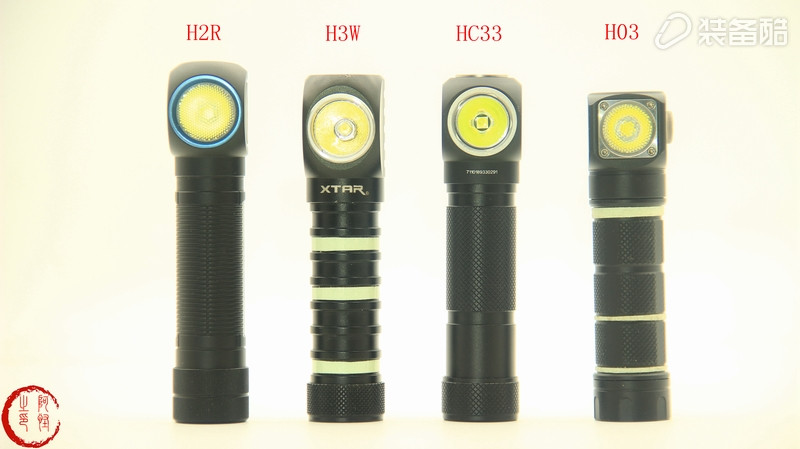

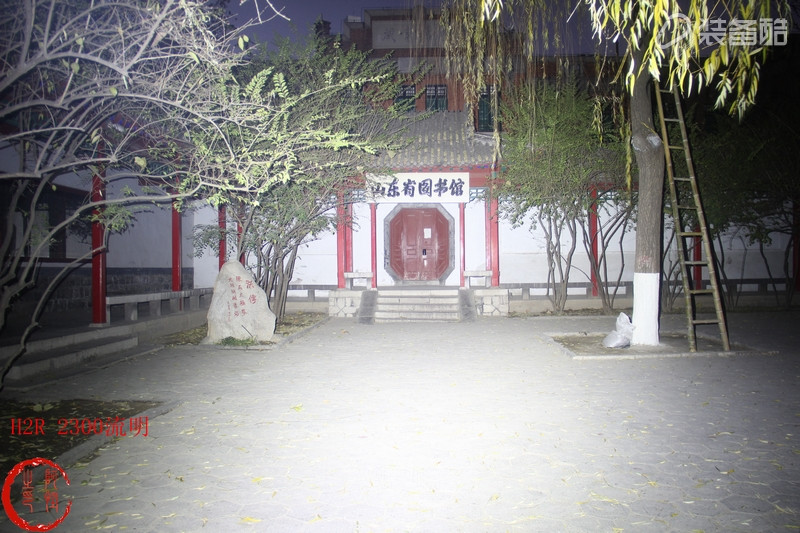

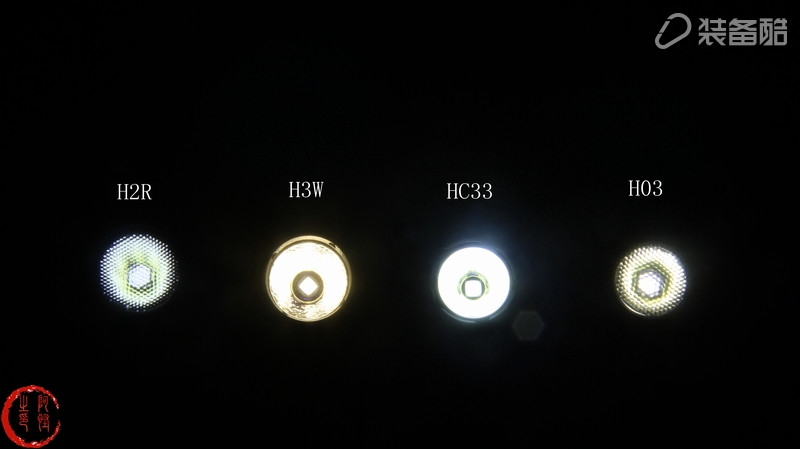

There are currently three L lamps that are similar to the HC33, namely OLIGHT's H2R, XTAR's H3W, and SKILHUNT's H03. The four heads are arranged in descending order. The lamp beads are XHP50, XM-L2 U3, XHP35 HD and XM-L2 U4 respectively. The lens cups are as follows.

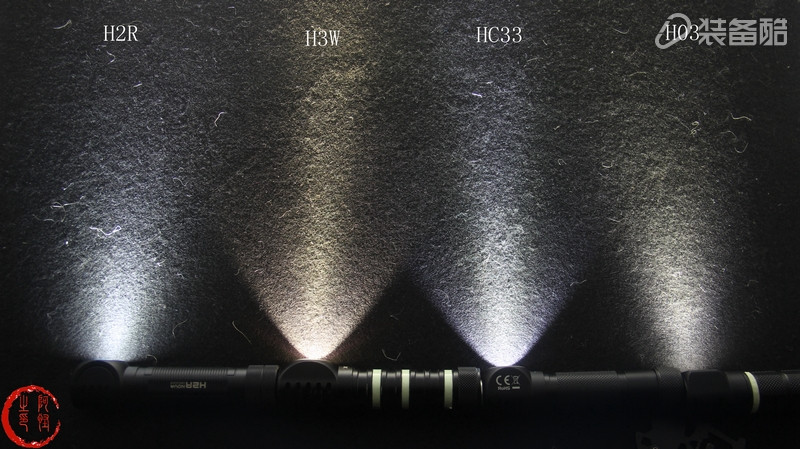

Color temperature contrast:
10 meters away from the night shot contrast:

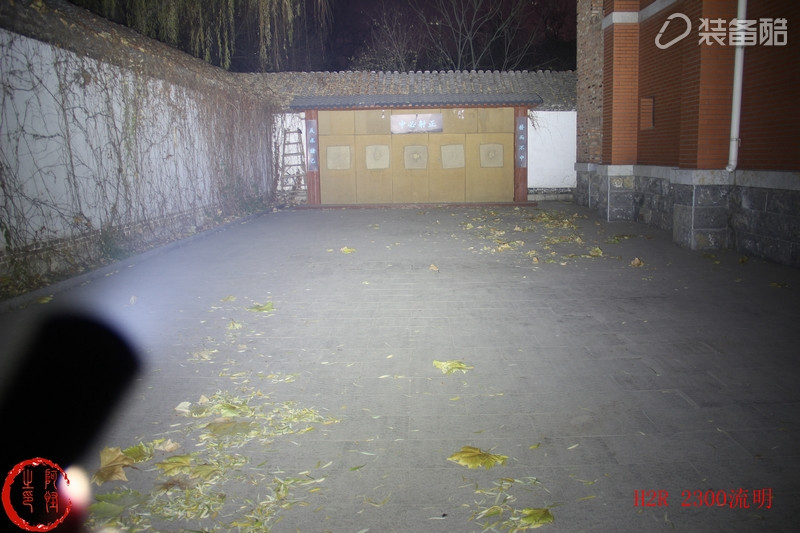

20 meters away from the night shot contrast:
100 meters from night shot
Third, summary
The HC33 is equipped with the NL1829LTHP high-discharge and low-temperature battery, which can be said to have reached an unprecedented perfection. However, there are several points where improvements can be made:

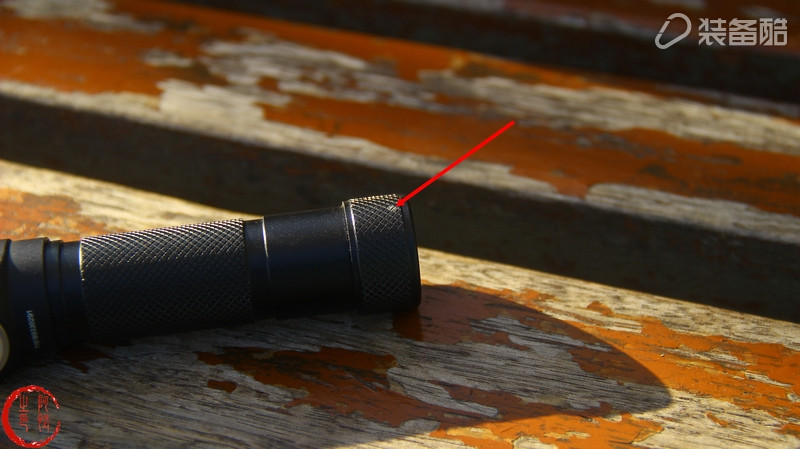

1, the bottom of the barrel near the tail cover, a week smooth, too rigid, it seems like something less.

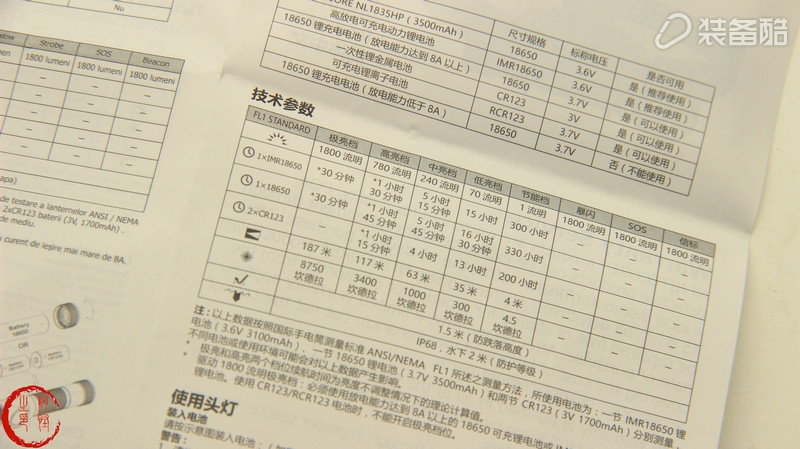

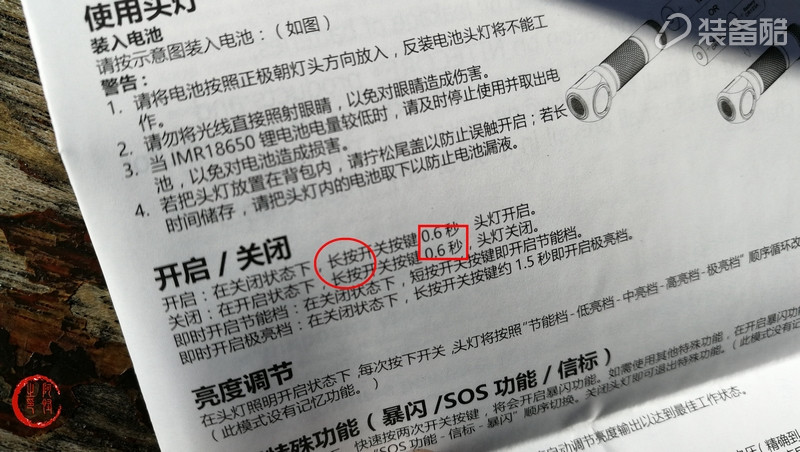

2, the manual mentioned that long press 0.6s, personal feeling so easy to cause misunderstanding, 0.6s itself is very short, it is better not to explain, direct short press.
3, if there is a hand rope hole on the tail cover, it will be excellent
