Dissecting UV Spectrophotometer Autosampler Accessories

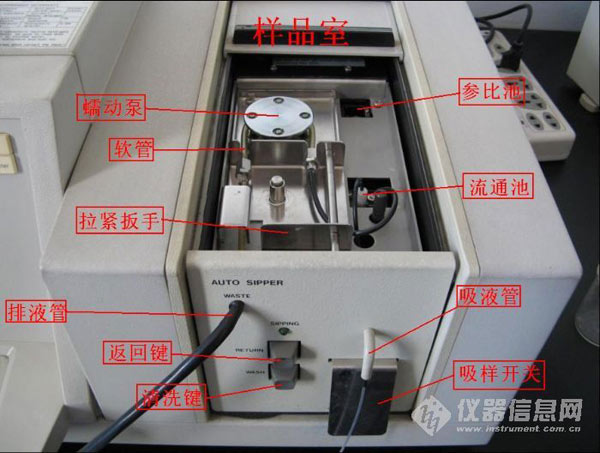

When using UV-Vis spectrophotometer to analyze a large number of liquid samples, it will be a very troublesome task if using traditional cuvettes. Because every time you change a sample to test, you must first take out the sample cell, pour out the previous sample, and then use a distilled water hydrogen cell, and finally pour a new sample into the test again. When the sample volume is small, this traditional method is also feasible. If the sample volume is large, it is more troublesome. If you can use the accessories described in the figure for automatic sample continuous testing, it will feel very convenient!
After removing the original standard cell rack, install this accessory in the sample chamber of the instrument. The operation process is like this:
(1) Pull the wrench of the peristaltic pump hose forward, the suction hose of the peristaltic pump is in tension; cover the upper cover of the sample chamber.
(2) Insert the cleaning fluid into the suction pipe, press the cleaning button, the peristaltic pump starts to rotate, the cleaning fluid is sucked into the flow cell and then drained from the drain pipe; the cleaning time is determined by the operator, as long as it is released The cleaning button will stop cleaning.
(3) After inserting the sample solution into the pipette, press the suction plate switch, the peristaltic pump starts to rotate; when the sample is sucked in about 1 ml, the peristaltic pump stops rotating, and the flow cell is already filled with about 0.8 ml Samples, the instrument began to perform measurements. When the test is over, if you need to recover the test sample, you can press the return key; then the sample originally injected into the flow cell can be spit back into the sample bottle. If there is no need to recover the original sample. At this time, you can insert the cleaning solution into the pipette and press the cleaning button to rinse the flow cell.
(4) Continue to test the next sample according to the previous step. Such repeated testing until the sample is tested.
The above is a brief introduction to the working process of the sample aspirator.
