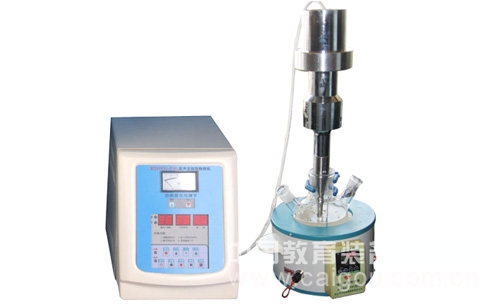

L-1500 ultrasonic material emulsion disperser
Shanghai Xinzhuang Instrument Co., Ltd. adheres to the leading business philosophy of technological innovation and technology, and continues to make new contributions to the development of human social undertakings by carrying out strategic innovations and innovative product innovations. It is a company that integrates R&D, production and sales. Excellent product quality, excellent service, the company specializes in producing all kinds of laboratory equipment.
LNB series ultrasonic material emulsifying disperser is mainly used for emulsification and micro-emulsification of oil water or other materials in petroleum and chemical processes, and also for liquid processing in light industry, nano materials, food and medicine departments.
Technical Parameters:
Model
Working frequency (KHz)
Ultrasonic power
(W)
random
Horn
Single throughput (ml
Optional horn
Temperature control (optional)
L-500
22±1
10-500
Φ6
0.2-200
Φ2, Φ3, Φ10
-120-300°C
L-1000
22±1
50-1000
Φ10
50-600
Φ6, Φ15
L-1500
20±1
300-1500
Φ20
250-1500
Φ25
L-6000
20±1
500-6000
Φ25
500-5000
Φ28
Main features:
â— The concentrating ultrasonic material emulsifier disperser directly immerses the horn of the high-power ultrasonic transducer into the reaction liquid, so that the sound energy directly enters the reaction system without being transmitted through the reactor wall of the cleaning tank. The advantage is that a large amount of energy can be directly delivered to the reaction medium, effectively converting electrical energy into mechanical energy, and the amount of ultrasonic energy can be controlled by changing the amplitude of the delivery to the transducer.
â—The product has strong expandability. (1) Optional cooling water circulation device, cooling water circulation device and special double-layer glass reaction reactor form a cooling water circulation system to achieve precise temperature control at any temperature point within the range of -5-100 °C. Effectively avoiding excessive temperature and causing damage to the sample structure, it is more convenient and accurate than the traditional ice bath cooling. (2) Optional magnetic stirrer. By stirring, the emulsification rate of the sample to be treated can be improved, and the treatment effect is better.
Shanghai Xinzhuang follows the policy of “survival by quality, development by technology, efficiency by management, and credibility by serviceâ€. Every step of equipment, every project, every link, welcome you to buy!
